Stiff Waddings Drying Machine
Stiff-wadding drying and shaping machine for bedding, furniture and high-quality mattresses.
- Authorized representative
- Install & maintain in Vietnam
- 12-month warranty
- Machine width
- 2600~3800mm
- Chamber length
- 4800~6000mm
- Heating method
- circulated hot oil / direct burning (dầu tải nhiệt tuần hoàn / đốt trực tiếp)
- Working speed
- ≤15m/min
Contact for a quote quoted by configuration
Overview
Product overview

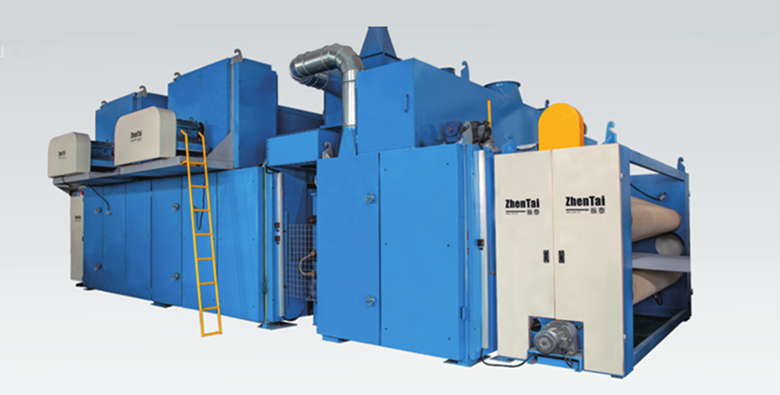

The Stiff Waddings Drying Machine is a drying and shaping unit used to produce stiff (hard) waddings for bedding, furniture and high-quality mattresses in a nonwoven production line.
The wadding is carried through the chamber to dry, press into shape and hold a consistent stiffness in the finished product. A double-layer Teflon-coated chain board with an independently lifting upper layer lets you set the thickness, while two high-pressure circulation blowers and a strong insulation system give even shaping with low energy use. It offers a 2600~3800mm width, a chamber length of 4800~6000mm, heating by circulated hot oil or direct burning, and a working speed of ≤15m/min.
Vina Nonwoven is the official Zhentai representative in Vietnam. We advise on the configuration and width for your product, with installation, commissioning, operator training and genuine warranty.
Technical specs
Configuration & specifications
Machine width 2600~3800mm
Chamber length 4800~6000mm
Heating method circulated hot oil / direct burning (dầu tải nhiệt tuần hoàn / đốt trực tiếp)
Working speed ≤15m/min
Applications
Highlights & applications
- Double layer chain board and Teflon coated, upper layer with independent lifting
- Two high-pressure circulation blowers for convective hot-air circulation
- Supreme insulation system to save energy
Q & A
Frequently asked questions
How is this stiff-wadding drying machine different from the spray-bonded wadding dryer?
This machine is dedicated to shaping stiff wadding for bedding, furniture and high-quality mattresses, using a double-layer Teflon-coated chain board to form the material rather than just drying it like the spray-bonded wadding dryer.
What is the chamber (body) length of this machine?
The chamber length is 4800~6000mm, with a machine width of 2600~3800mm.
How does it achieve consistent shaping of the stiff wadding?
The double-layer Teflon-coated chain board, with an independently lifting upper layer, controls thickness, combined with two high-pressure circulation blowers that distribute hot air evenly through the chamber.
What heating method does the machine use?
It uses circulated hot oil or direct burning, with a maximum working speed of ≤15m/min, plus a supreme insulation system to save energy.
How can I get advice and a quote for this Zhentai stiff-wadding drying machine?
Pricing depends on the configuration (machine width, chamber length, etc.); please contact Vina Nonwoven — the Zhentai distributor in Vietnam — via hotline or Zalo for specific advice.
