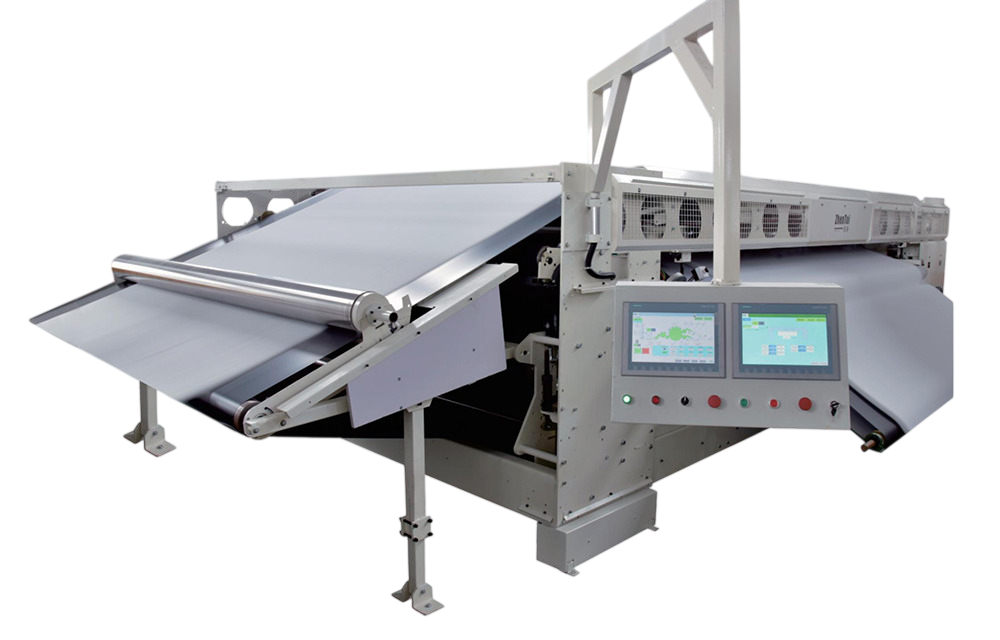

Five Shaft Cross Lapper
High-speed five-shaft cross lapper with PLC control — a spunlace-dedicated unit also serving needle-punch, thermal- and chemical-bond lines.
- Authorized representative
- Install & maintain in Vietnam
- 12-month warranty
- Input curtain width
- 2900mm 3400mm
- Output curtain width
- 3500~7500mm
- Working speed
- ≤90m/min
- Power
- 26~71kw
Contact for a quote quoted by configuration
Overview
Product overview
The five-shaft cross lapper is a high-speed web-forming unit dedicated to spunlace, and equally suited to needle-punch, thermal-bond and chemical-bond nonwovens. Its five-shaft build and PLC control allow fast, accurate laying at high throughput.
It pairs an anti-static carbon curtain with high-performance driving rollers, a high-speed batt-feeder, a PLC-interface control system and a stable auto-adjust edge system that keeps the web edges even. The unit takes an input curtain of 2900mm or 3400mm and delivers an output curtain of 3500~7500mm, at a working speed of ≤90m/min and power of 26~71kw.
Vina Nonwoven is the authorized Zhentai representative in Vietnam, advising on lapping configuration for spunlace lines, installation and in-country warranty. Contact us for a quote.
Technical specs
Configuration & specifications
Input curtain width 2900mm 3400mm
Output curtain width 3500~7500mm
Working speed ≤90m/min
Power 26~71kw
Applications
Highlights & applications
- Anti- static carbon curtain High-Performance driving Rollers
- High-speed batt- feeder crossing lapper
- Five utilizes PLC interface controlling system
- Stabled auto-adjust edge system
Q & A
Frequently asked questions
How does this five-shaft cross lapper differ from the standard Type II unit?
It is dedicated to spunlace technology, uses a PLC-interface control system, and runs faster than the Type II unit — up to 90 m/min versus 60 m/min.
What are the input and output curtain widths?
Input curtain width comes in two sizes, 2900mm or 3400mm, with output curtain width from 3500~7500mm depending on configuration.
Is this machine's power draw high compared with other lappers?
Power draw is 26~71 kW, notably higher than the Type II cross lapper's 6.7~15.9 kW, reflecting its higher working speed and load.
Can this machine be used on a needle-punch-only line, not just spunlace?
Yes — although purpose-built for spunlace, it also suits needle-punch, thermal-bond and chemical-bond nonwoven lines.
How can I contact Vina Nonwoven for a quote on the five-shaft cross lapper?
Pricing depends on the width and configuration ordered; reach out to Vina Nonwoven via hotline, Zalo or Facebook for consultation and a quote.
