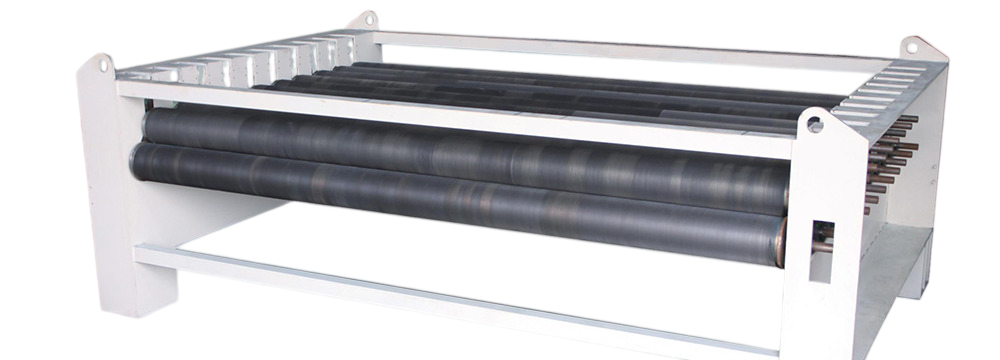

Drafter
Drafts the needled web to optimise MD:CD uniformity before finish needling — draft ratio set precisely under PLC control.
- Authorized representative
- Install & maintain in Vietnam
- 12-month warranty
- Machine width
- 2200~7200mm
- 5groups drafting ratio
- 1:1~1:3times
- 7groups drafting ratio
- 1:1~1:3.6times
- 9groups drafting ratio
- 1:1~1:4times
Contact for a quote quoted by configuration
Overview
Product overview
The drafter is a web-forming unit that stretches the needled web to optimise its lengthwise (MD) and crosswise (CD) uniformity before finish needling within a nonwoven production line. This balances the MD:CD ratio, improving fabric strength and dimensional stability.
It is driven by an independent variable-speed motor or a servo unit under PLC control, which sets the draft ratio precisely through fine-tuning and master calibration, while the upper roller lifts independently to adjust the inter-roller gap. The machine comes in 2200~7200mm widths, with draft ratios of 1:1~1:3 (5-group), 1:1~1:3.6 (7-group) and 1:1~1:4 (9-group).
Vina Nonwoven is the authorized Zhentai representative in Vietnam, advising on selecting the number of roller groups for your drafting needs, installation and in-country warranty. Contact us for a quote.
Technical specs
Configuration & specifications
Machine width 2200~7200mm
5groups drafting ratio 1:1~1:3times
7groups drafting ratio 1:1~1:3.6times
9groups drafting ratio 1:1~1:4times
Applications
Highlights & applications
- The machine is driven by independent variable speed motor or servo unit PLC control
- Control the draft ratio precisely with some fine-tuning, master calibration, and PLC controlling
- Upper roller can separate movements and adjust distance
Q & A
Frequently asked questions
What does the drafter do in a needle-punch process?
It acts on the pre-needled web to optimise machine-direction to cross-direction (MD:CD) uniformity before the web goes on to finish needling.
How does the draft ratio differ between the 5-, 7- and 9-group configurations?
The 5-group setup gives a draft ratio of 1:1~1:3, the 7-group version reaches 1:1~1:3.6, and the 9-group version tops out at 1:1~1:4 — more groups allow a higher maximum draft ratio.
What machine width options are available?
Machine width ranges from 2200~7200mm, selected to match your existing line width.
Can the gap between rollers be adjusted?
Yes, the upper roller moves independently to adjust the inter-roller gap, and the draft ratio is precisely fine-tuned and master-calibrated under PLC or servo control.
Can Vina Nonwoven help me pick the right group configuration, and how do I get a quote?
Yes, Vina Nonwoven's team will advise whether the 5-, 7- or 9-group configuration fits your line; contact us via hotline or Zalo for a specific quote.
