Polyester solid/hollow conjugated staple fibre (PSF) production line

Complete line producing solid & hollow conjugated polyester staple fibre from recycled PET — capacity 3,000–50,000 T/Y.

Authorized representative
Install & maintain in Vietnam
12-month warranty

Denier Size: 1.5Den, 3Den, 6Den, 10Den, 15Den, 18Den, 22Den, 25Den, 33Den
Cut length: 44, 51, 64, 76, 102 (As per customer requirement)
Feel: siliconised or non siliconised soft as well as harsh feel
Tensile strength: 3.5 to 4.5 gm/Denier

Contact for a quote quoted by configuration

Overview

Product overview

The polyester solid/hollow conjugated staple fibre (PSF) production line is a complete line used to produce polyester staple fibre — both solid and hollow conjugated types — from PET/polyester waste and post-consumed PET bottles.

The finished fibre serves polyfill wadding, premium pillows, cushions and quilts, automotive non-woven carpet, spinning yarns and geotextiles, while hollow fibre in particular delivers superior bulk and resilience. The line has two parts: a spinning line (vacuum/crystallizing drying, extrusion, filtering, spin beam, quenching, winding, drafting and can-traversing) and a finishing line (creel stand, stretching, stacking and crimping, heat-setting and baling). The fibre reaches a tensile strength of 3.5–4.5 gm/Denier across 1.5–33 Den and cut lengths of 44–102mm as required, with a flexible capacity of 3,000–50,000 T/Y and a typical case being a 60 TPD line.

Vina Nonwoven is the authorized Yongxing representative in Vietnam: we advise on line configuration and capacity for exactly the fibre you plan to produce, with local installation, commissioning, maintenance and warranty.

Technical specs

Configuration & specifications

Fiber technical data

Denier Size 1.5Den, 3Den, 6Den, 10Den, 15Den, 18Den, 22Den, 25Den, 33Den

Cut length 44, 51, 64, 76, 102 (As per customer requirement)

Feel siliconised or non siliconised soft as well as harsh feel

Tensile strength 3.5 to 4.5 gm/Denier

Elongation 40 to 60%

Oil Pickup minimum 0.20% to 0.35%

Crimps 3 to 5 per cm

Shades All shades available

Color Fastness 4+

Quality Hollow Conjugate Siliconised Fiber, Hollow Non-Conjugate Siliconised Fiber, Solid Fiber Siliconised/non Siliconised

Vacuum Dryer

Model VC357

Material Inner shell touching material is stainless steel; out shell is Q235-B.

Driving power 5KW

Capacity of drum Full capacity 7m3, effective capacity3.8m3

Rotating speed 9 r/min

Material load Bottle flakes 1900Kg

Moisture content of bottle flakes ≤4%

Moisture content of dried material ＜01%

Drying time according to technic

Heating media Steam

Steam pressure 4Mpa (Max)

Working temperature 130~150℃ (Max)

Limit vacuum degree 3Pa

Outline — Drum 5145×3005×3184

Outline — Dust-collecting barrel фin600×1340

Outline — Cooling barrel фin812×1520

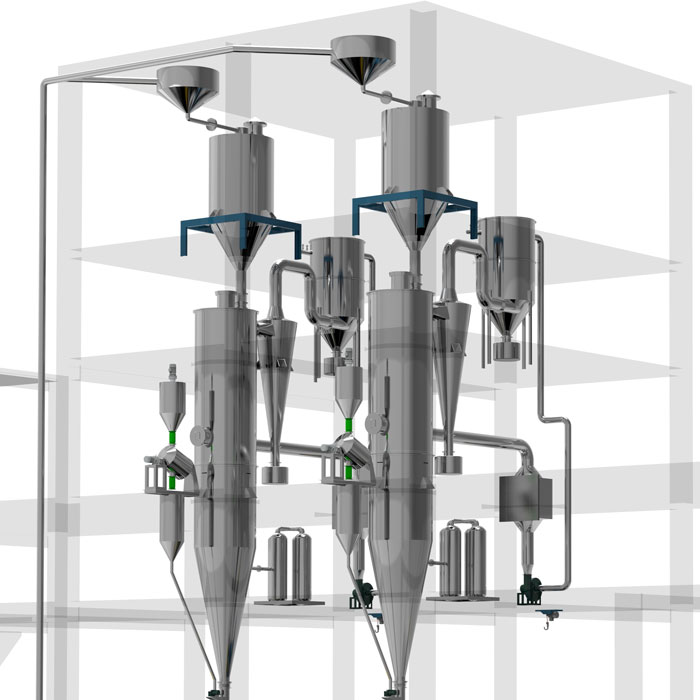

Continuous Crystallizing Dryer

Capacity of wet flakes Conveying System 1 t/h

Capacity of Crystallizing/Drying System 1000kg/h

Capacity of wet flakes Conveying System 1t/h

Size of PET flake 10-12mm, popcorn size : 10-12mm

Water Ratio of Wet flake ≤ 2%

Water Ratio of Dry flakes ≤0.0070%(70ppm)

Masterbatch dosing system

Optical agent dosing system

Extruder

Specification φ160，φ179，φ180，φ190，φ220

Filter

Type vertical, 2 groups of filtrating chambers, exchanging filtrating barrel continuously;。

Heating Power 15kw;

Heating Media Thermal oil. Melt inlet pipe increase static mixer, inner of melt pipe is polished. Melt pipe and spin beam is connected by flange.

Control Use pressure≥25MPa, inlet pressure electronic indication, and automatic control. Indication precision: 0.1MPa. Self-control precision: 0.3MPa.

Spin Beam

Heating media Thermal oil 330# or diphenyl heating.

Heating power Electrical heat, heating power: 72kw (divided in three groups) spin beam use 14mm boiler steel plate, inner of pipe is polished. Spin beam body use tem-keeping cotton to keep heat. Out shell of side and bottom is 2mm stainless steel plate. Top uses 4mm thickness diamond plate. out face is aluminum paint;

Other main machines in the line

Quenching

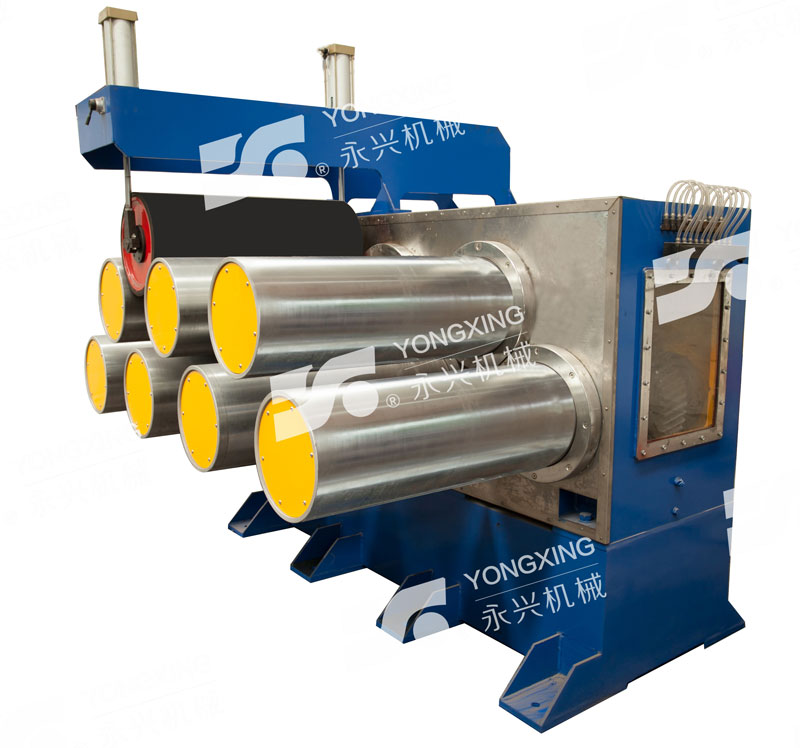

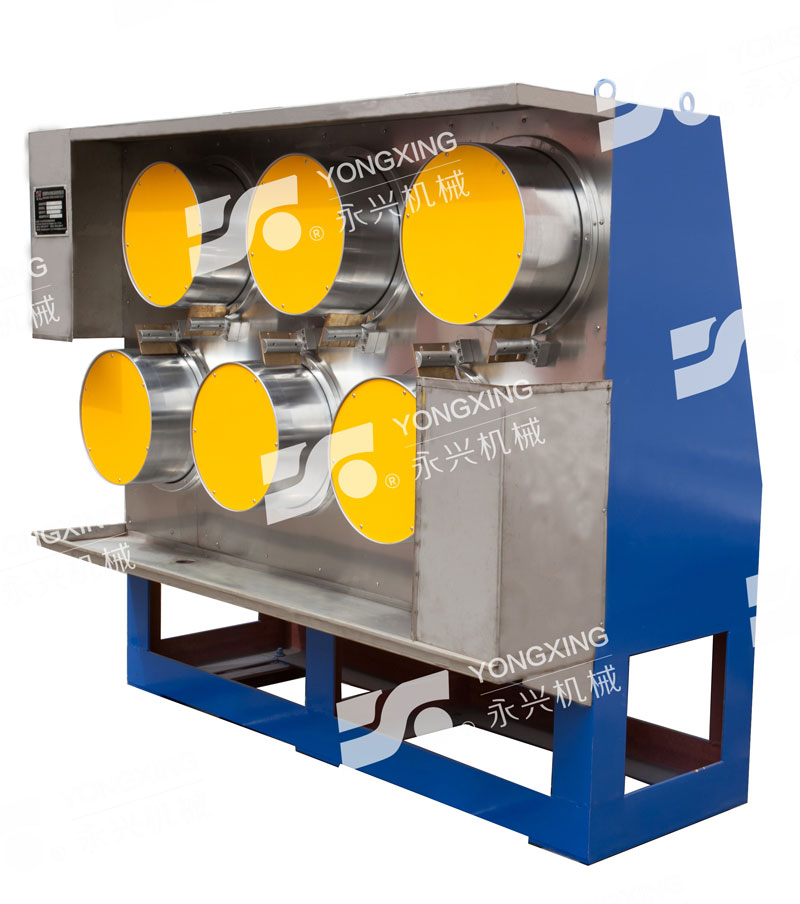

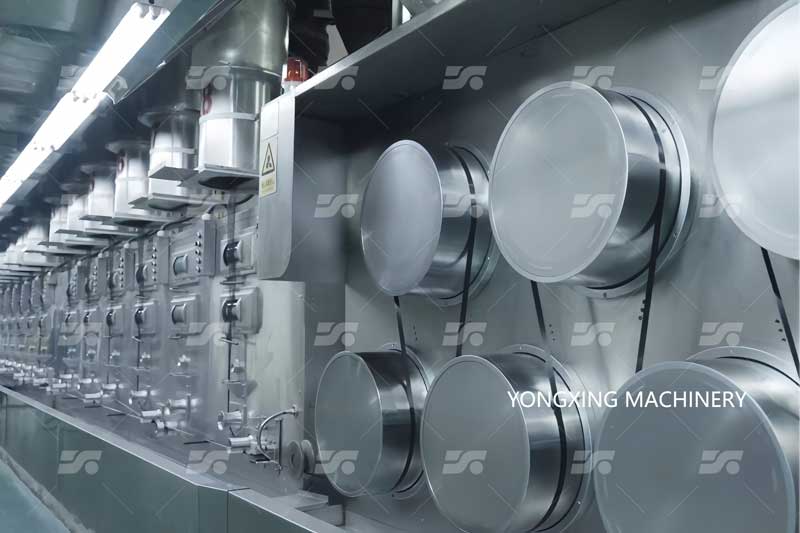

Winder

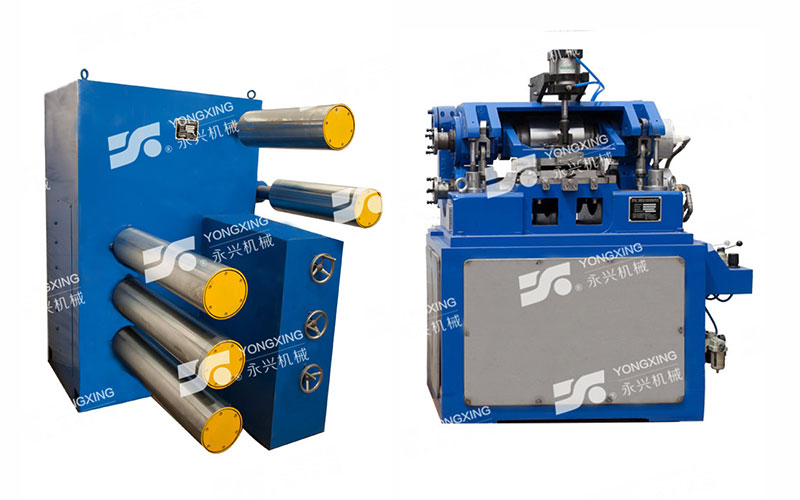

Six-roller drafter & Sunflower Wheels

Can Traversing Unit

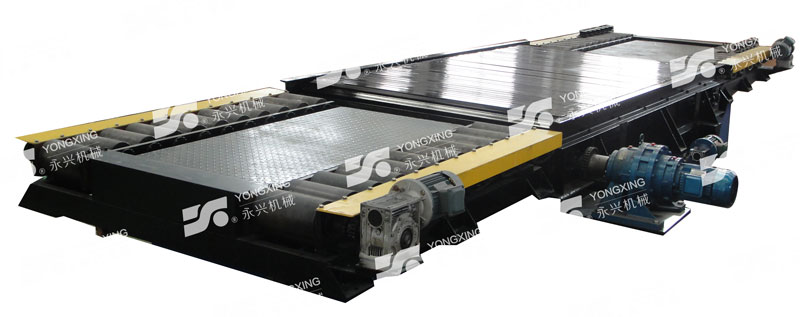

Creel Stand

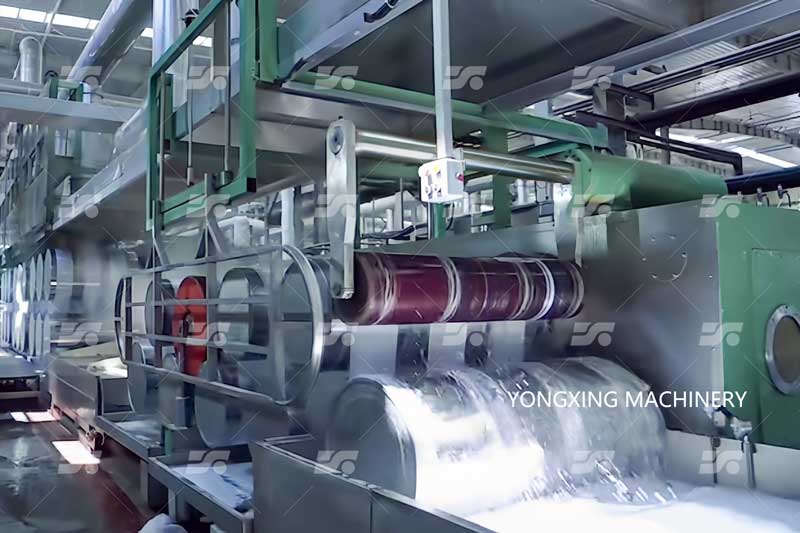

Stretcher

Stacker & Crimper

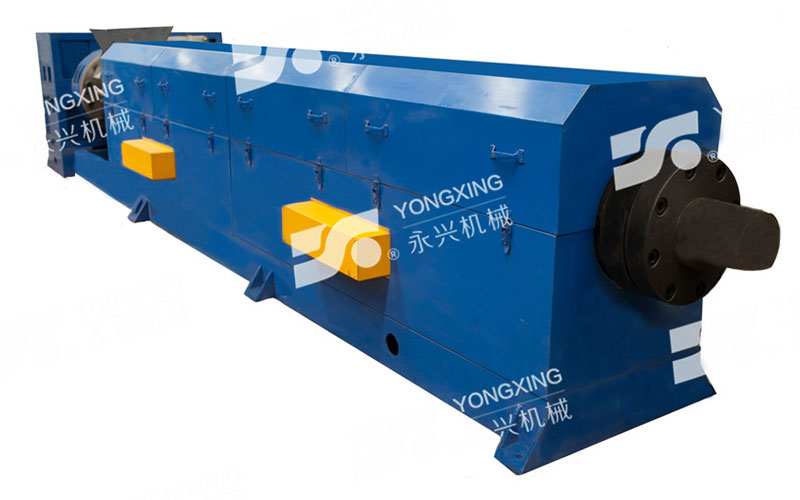

Relax and Heating Setter

Baler

Spinning line + finishing line.

Applications

Highlights & applications

Cushions, pillows, quilts, toys, jackets, mattresses
Non-woven carpet for automobiles; automotive and speaker felts
Polyfill wadding, geotextiles, filter fabrics and acoustic materials

Q & A

Frequently asked questions

What raw material does this PSF line use?

The polyester staple fibre is produced from recycled PET/polyester waste and post-consumer PET bottles, not virgin PET chips.

What's the difference between solid and hollow fibre, and when is each used?

The line produces both solid fibre and hollow conjugate fibre; hollow fibre gives better resilience, making it suited to pillows, cushions and quilts that need loft and shape recovery.

What capacity range does the line cover?

The line's capacity ranges from 3,000 to 50,000 T/Y; a typical example is a 60 TPD (tonnes per day) line.

What products is the PSF fibre used for?

The fibre is used for cushions, pillows, quilts, toys, jackets, mattresses, automotive/speaker felts and non-woven carpet, polyfill wadding, geotextiles, filter fabrics and acoustic materials.

How do I get a quote for this PSF line from Vina Nonwoven?

Pricing depends on the capacity and configuration chosen (for example, a 60 TPD line). Contact Vina Nonwoven via hotline or Zalo for consultation and a quote.
