Top Flats Card Clothing

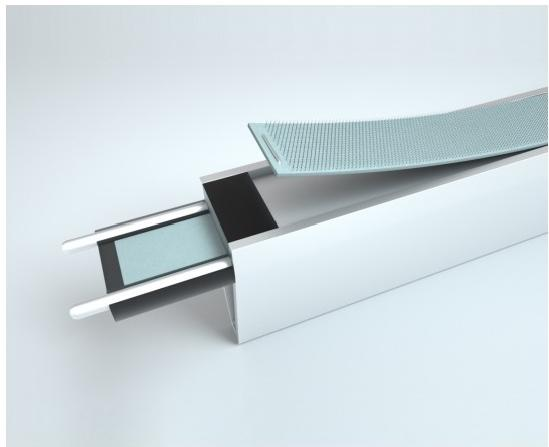

Top flats card clothing for carding machines — three needle-tooth arrangements (horizontally dense, uniform density, gradually dense) with a neodymium-magnet stationary plate for fast manual replacement.
- Authorized representative
- Install & maintain in Vietnam
- 12-month warranty
Contact for a quote quoted by configuration
Overview
Product overview

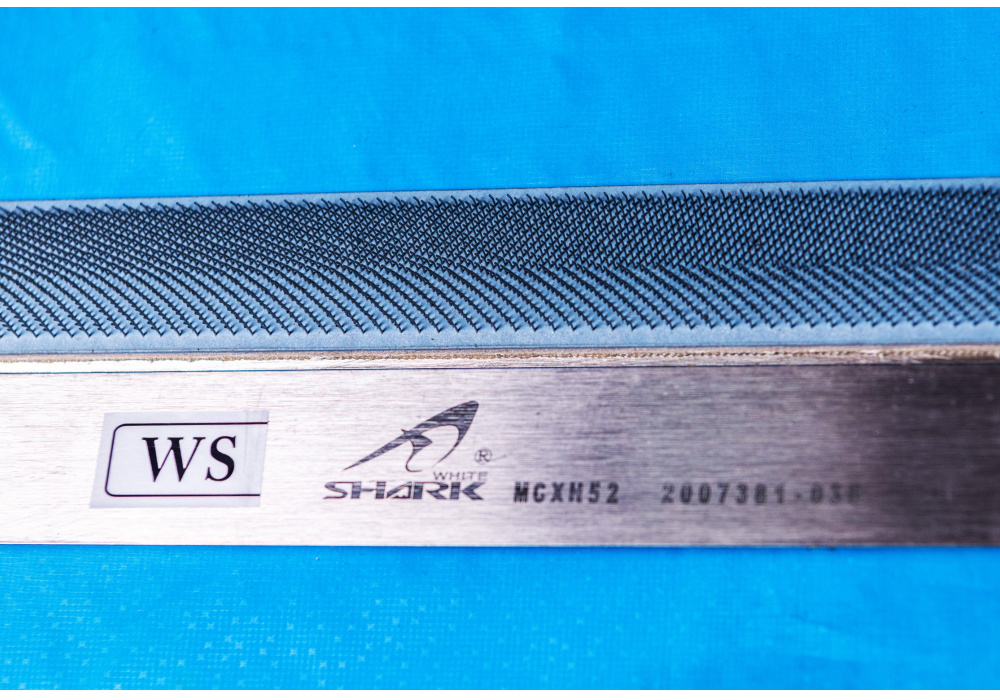

Top flats card clothing is card clothing fitted to the flat bars that travel above the cylinder of a carding machine, working with the cylinder to comb fibers finely and pull impurities and neps out of the web. White Shark divides it by tooth arrangement into three series, horizontally dense, uniform density and gradually dense, so the carding configuration can match each fiber type. An optional neodymium-magnet stationary plate lets a flat be changed by hand alone, without machines or special tools, shortening downtime and cutting operating and maintenance costs. Vina Nonwoven supplies genuine White Shark top flats card clothing, advises on the right tooth arrangement and density, and accepts made-to-order requests.
Applications
Highlights & applications
- Horizontally dense series flat card clothing
- Uniform density series flat card clothing
- Gradually dense series flat card clothing
- Optional neodymium-magnet stationary plate: manual replacement, no tools
Q & A
Frequently asked questions
How many tooth arrangements does this top flats card clothing come in?
Three: horizontally dense, uniform density, and gradually dense.
What is the benefit of the optional neodymium-magnet stationary plate?
It lets the card clothing be replaced in the shortest time by hand, with no machines or special tools required, significantly cutting operating and maintenance costs.
Which density series should I choose for my fiber type?
It depends on the fiber being processed — the horizontally dense, uniform, or gradually dense series each suit different needs; contact Vina Nonwoven for advice matched to your specific fiber.
Does replacing the top flats require long machine downtime?
With the neodymium-magnet stationary plate option, replacement is done entirely by hand, eliminating the mechanical steps of removing and wrapping the cover, which significantly shortens maintenance time.
Where can I get a quote for this top flats card clothing?
Contact Vina Nonwoven via hotline or Zalo for advice on the right density series and a quote.
